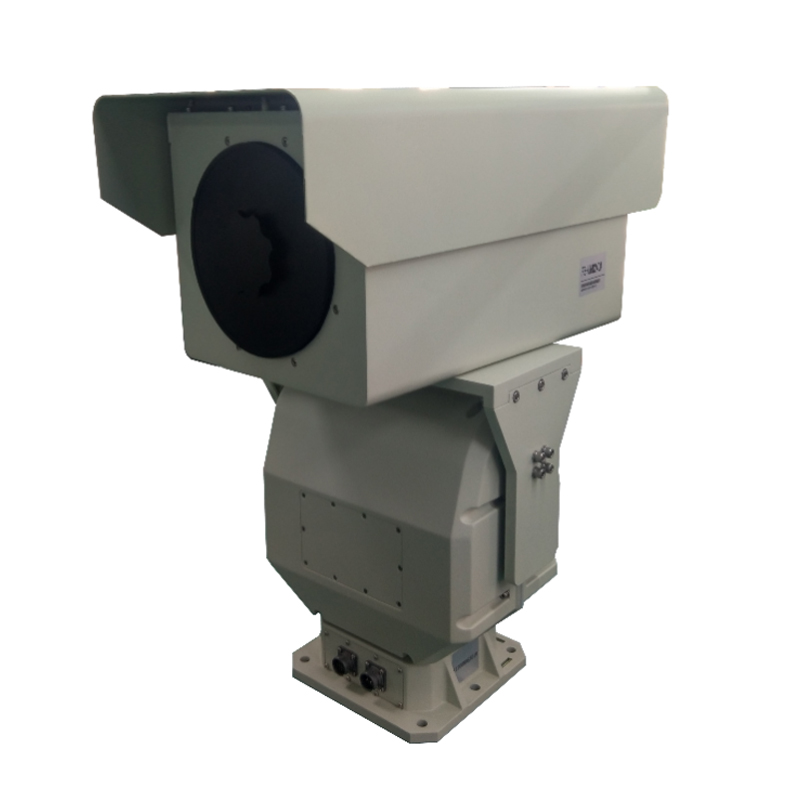

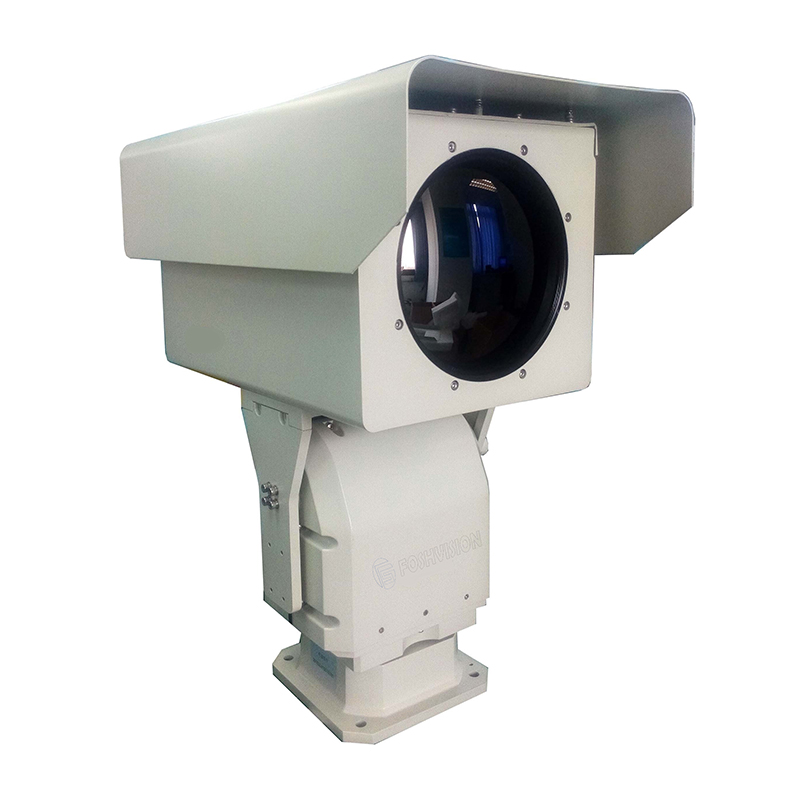

SHR-HNIR230Y infrared thermal imaging system is designed for security and surveillance requirements.The thermal imaging camera is accompanied with 640×512 uncooled focal array detector and 30-230mm lens.The thermal imaging camera has hard and sealed shell,with nitrogen inside can penetrate rains and dusts work normally in harsh environment.
Combining fourth generation of uncooled focal plane array infrared detector, advanced electronic and optic system, it can penetrate haze, smoke, rain, snow and darkness offer perfect image.This product can be used in many occasions for surveillance.
◆ 640×512 Uncooled microbolometer infrared focal plane arrays;
◆ 17μm pixel, fine image quality, clearer observation of small targets, longer detection distance;
◆ High sensitivity, NETD at 50mk, Frame rate of 25 Hz;
◆ 20~230mm 11.5X continuous zooming, with clear image;
◆ Dynamic Detail Enhancer (DDE) function; output white hot/black hot/color palette;
◆ Low power consumption, quick start-up, stable performance, image with high uniformity ;
◆ Digital video signal output, easy to access to existing security monitoring network ;
◆ Sealed shell, smart shape, nitrogen inside, anti-harsh environment;
50% probability of achieving objective at the specified distance given a 2-degree temperature difference and 0.85/km atmospheric attenuation factor. Actual range may vary depending on camera setup, environmental conditions, user experience, and type of monitor or display used.
