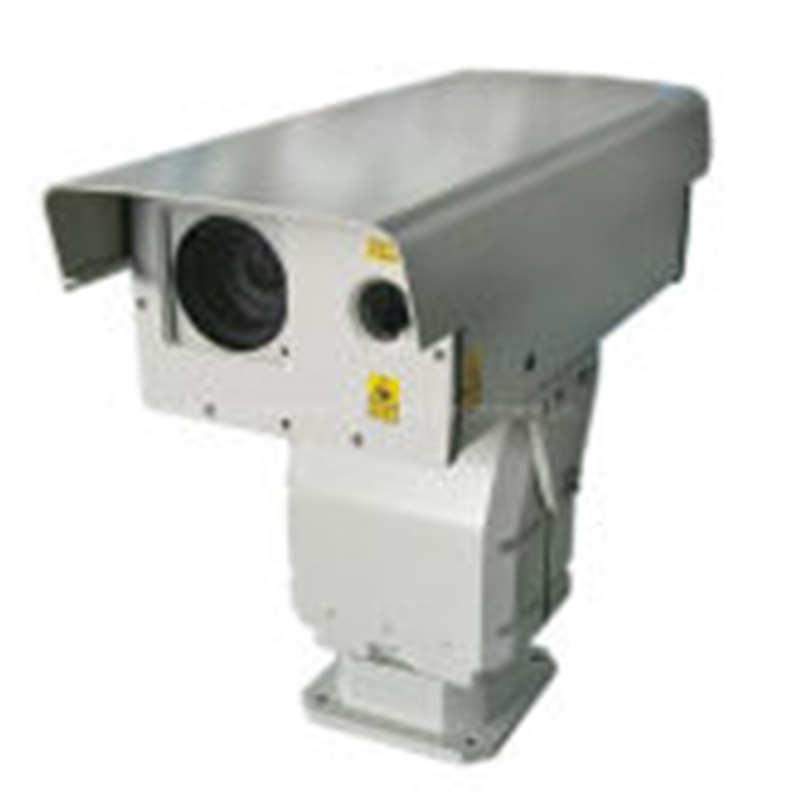

Model No:

SHR-HLV2020

Categories:

HD Long Range Night Vision Camera
PRODUCT DESCRIPTION

Product Features

◆ Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

◆ Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring

◆ MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition

◆ Supporting fog penetration, backlight compensation, multistage wide dynamic

◆ Optional auto focusing function, realizing multiple focusing mode and triggering mode

◆ Supporting camera back focal length fine adjustment technology and camera remote debugging

◆ Supporting long focal length speed limit and 3D locating function

◆ Abundant network protocol and good network applicability, adapting all kinds of network environment

◆ External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment

◆ Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain


Specification

Monitoring distanceNight vision2000meters
Day vision5000meters
Imaging lensFocal length12.5~750mm
FOV28.7°~0.5°
Auto focusSupport
Fog penetrationSupport(optional)
CameraSensor type1/1.8”Progressive Scan CMOS
Coding modeH.264/MPEG4/MJPEG
Video resolution1080P,CIF,supporting three stream
Video bit rate32Kbps~16Mbps
Video frame rate1~25F/S(50Hz),1~30F/S(60Hz)
IlluminatorIlluminating lens60x zooming laser telephoto lens
Power15W
Wave length810nm
Illuminating angle0.5°~30°continuous changing
Light  homogenizationmulti-tube core fusion mixed mode light homogenization technology
ShieldMaterialPrecise casting aluminum alloy
Window glass4mm crystallite super white optical glass
Pan-tiltLoad50kg(top load)
AngleHorizontal 360°continuous rotation, vertical -45°~+45°(-60°~+20° optional)
SpeedHorizontal 0.01°~12°/pitching 0.01°~8°/s
Presets255 bits, supporting lens zooming, focusing and preset bits
Auto cruise8 paths,10 preset bits each path
Anti-lightning2000V
InterfacePower supply interfaceDC30V
Network interface1×10Base-T/100Base-TX, RJ45
Environment indicatorsWorking temp-25℃~+55℃
Storage temp-40℃~+65℃
Protection gradeIP66
PowerPower supplyWide range AC90 ~ 295V to DC30V/5A waterproof power supply
Power consumption≤130W
Physical featuresWeight45kg
Installation methodoutdoor pedestal mounting
