Model No:

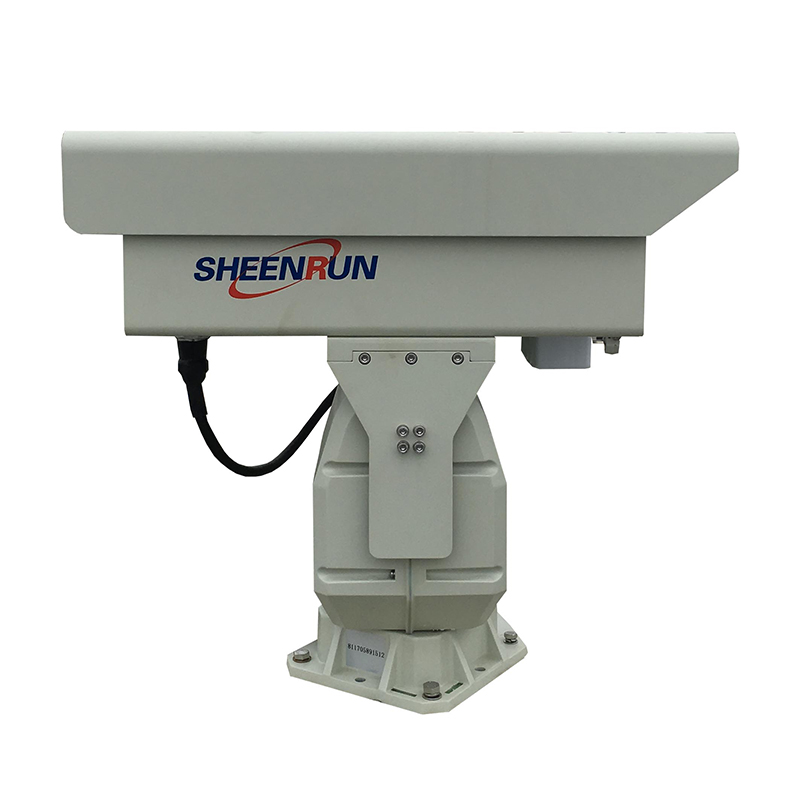

SHR-HLV3020

Categories:

HD Long Range Night Vision Camera
PRODUCT DESCRIPTION

Product Features

◆ Synchronous zooming laser illumination system with long distance and wide range, enabling monitoring in complete darkness (0Lux)

◆ Day and night 2 megapixel color-to-black camera with low light sensitivity for continuous monitoring

◆ MCIC's multi-tube core fusion mixed mode light homogenization technology ensures high edge definition without speckles or dark rings.

◆ Supporting fog penetration, backlight compensation, multistage wide dynamic

◆ Optional auto-focus function enables multiple focusing and triggering modes.

◆ Supporting fine adjustment technology for camera back focal length and remote debugging of the camera.

◆ Supporting long focal length speed limit and 3D locating function

◆ Abundant network protocols and good network applicability enable adaptation to all kinds of network environments

◆ External MMA fine adjustment mechanism eliminates the need for disassembly to complete laser alignment adjustments.

◆ Professionally designed shell, artistic, lightweight, sturdy, high-temperature resistant, corrosion-resistant, waterproof and acid rain-resistant.


Specification

Monitoring distanceNight vision3000meters
Day vision5000~8000meters
Imaging lensFocal length20~750mm
FOV0.5°~17.8°
Auto focus Support
Fog penetrationSupport (optional)
CameraSensor type1/1.8”Progressive Scan CMOS
Coding modeH.264/MPEG4/MJPEG
Video resolution1080P,CIF,supporting three stream
Video bit rate32Kbps~16Mbps
Video frame rate1~25F/S(50Hz),1~30F/S(60Hz)
IlluminatorIlluminating lens60* zooming laser telephoto lens
Power20W
Wave length810nm
Illuminating angle0.3°~18°continuous changing
Light  homogenizationmulti-tube core fusion mixed mode light homogenization technology
Pan-tiltLoad50kg(top load)
AngleHorizontal 360°continuous rotation, pitching -45°~+45°(-60°~+20° optional)
SpeedHorizontal 0.01°~12°/s, pitching 0.01°~8°/s
Preset bits255 bits, supporting lens zooming focusing and preset bits
Auto cruising8 paths,10 preset bits each path
Anti-lightning2000V
InterfacePower supply interfaceDC30V
Network interface1×10Base-T/100Base-TX, RJ45
Environment indicatorsWorking temp-25℃~+55℃
Storage temp-40℃~+65℃
Protection gradeIP66
Power supplyWhole machine power supplyWide input AC90 ~ 295V to DC30V waterproof power supply
Whole machine power consumption≤150W
Physical featuresWeight≤50kg
Installation methodoutdoor pedestal mounting
