Model No:

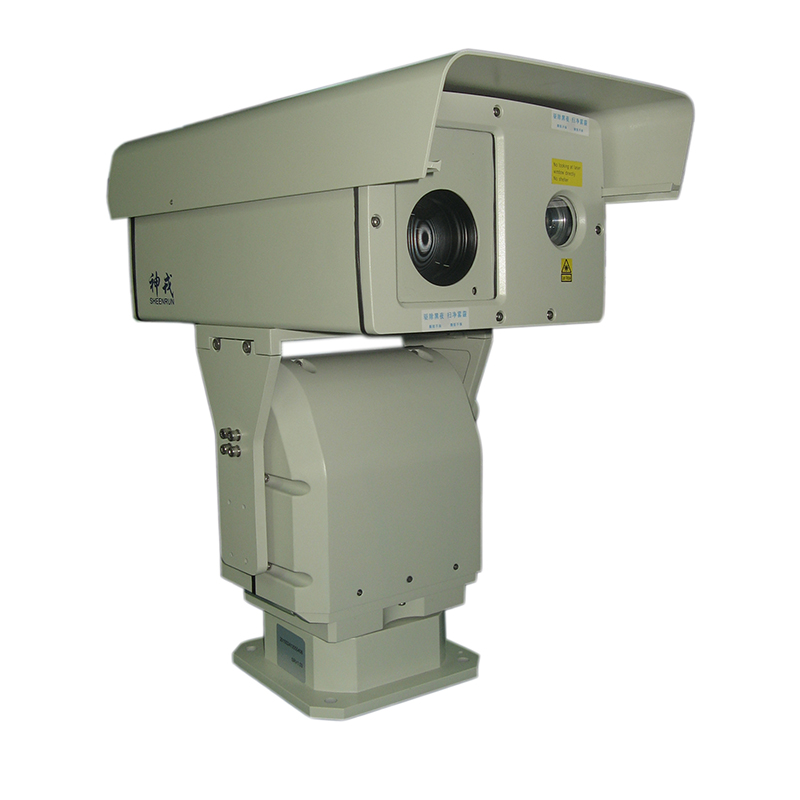

SHR-HLV1020

Categories:

HD Middle Range Night Vision Camera
PRODUCT DESCRIPTION

Product Features

◆ Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

◆ Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring
◆ MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition
◆ Supporting fog penetration, backlight compensation, multistage wide dynamic
◆ Optional auto focusing function, realizing multiple focusing mode and triggering mode
◆ Supporting camera back focal length fine adjustment technology and camera remote debugging
◆ Supporting long focal length speed limit and 3D locating function
◆ Abundant network protocol and good network applicability, adapting all kinds of network environment
◆ External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment
◆ Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain


Specification

Monitoring distanceNight vision1000meters
Day vision2000meters
Imaging lensFocal length12.5~400mm
FOV1°~33.5°
Auto focusingsupporting(optional)
Fog penetrationsupporting(optional)
CameraSensor type1/1.8”Progressive Scan CMOS
Coding modeH.265/H.264/MJPEG
Video resolution1080P,supporting three stream
Video bit rate32Kbps~16Mbps
Video frame rate1~25F/S(50Hz),1~30F/S(60Hz)
IlluminatorPower8W
Wave length810nm
Illuminating angle0.5°~30°continuous changing
Light  homogenizationmulti-tube core fusion mixed mode light homogenization technology
ShieldMaterialPrecise casting aluminum alloy
Window glass4mm crystallite super white optical glass
Pan-tiltCarrying capacity22kg(top load)
AngleHorizontal 360°continuous rotation,pitching -60°~+20°
SpeedHorizontal 0.1°~9°/s,pitching 0.1°~4°/s
Preset bits255 bits,supporting lens zooming and focusing memory,8 cruising paths
Auto cruising8 paths,10 preset bits each path
Anti-lightning2000V
InterfacePower supply interfaceAC24V
Network interface1×10Base-T/100Base-TX,RJ45
Environment indicatorsWorking temp-25℃~+55℃
Storage temp-40℃~+65℃
Protection gradeIP66
Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/5A water proof power supply
Whole machine power consumption≤80W
Physical featuresWeight25kg
Installation methodoutdoor pedestal mounting
