Model No:

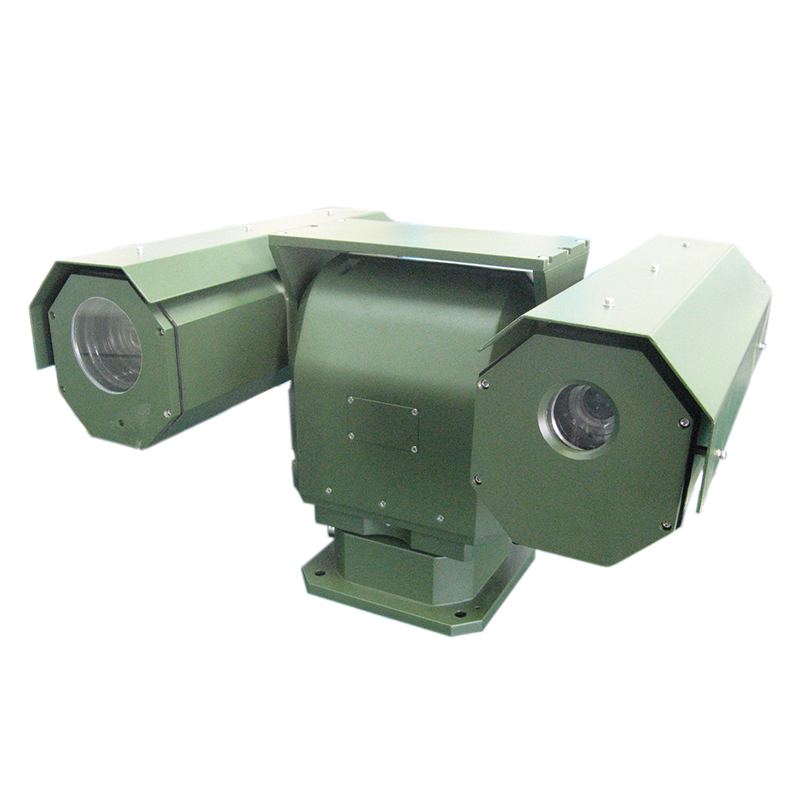

SHR-HVLV1000

Categories:

HD Middle Range Night Vision Camera
PRODUCT DESCRIPTION

Product Features

◆ Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

◆ Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring

◆ MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition

◆ Supporting fog penetration, backlight compensation, multistage wide dynamic

◆ Optional auto focusing function, realizing multiple focusing mode and triggering mode

◆ Supporting camera back focal length fine adjustment technology and camera remote debugging

◆ Abundant network protocol and good network applicability, adapting all kinds of network environment

◆ Cross pin type variable speed Pantilt, realizing all-round monitoring with high precision.

◆ High-intelligence, easy to operate and maintenance.

◆ Special rugged design, suitable for different kinds of vehicle and ships.

◆ Low power consumption, generating a little heat, Stable performance.


Specification

ModelSHR-HVLV 1000
Monitoring distanceNight vision1000meters
Day vision2000meters
Imaging lensFocal length12.5~400mm
FOV1°~33.5°
Auto focusingsupporting
Fog penetrationsupporting(optional)
CameraSensor type1/1.8”Progressive Scan CMOS
Coding modeH.264/H.265/MJPEG
Video resolution1080P,CIF,supporting three stream
Video bit rate32Kbps~16Mbps
Video frame rate1~25F/S(50Hz),1~30F/S(60Hz)
IlluminatorIlluminating lens60* zooming laser telephoto lens
Power8W
Wave length810nm
Illuminating angle0.5°~30°continuous changing
Light  homogenizationmulti-tube core fusion mixed mode light homogenization technology
Pan-tiltAngleHorizontal 360°continuous rotation,pitching ±45°
SpeedHorizontal 0.1°~20°/s, pitching 0.1°~12°/s
Preset bits255 bits, supporting lens zooming and focusing memory, 2 cruising paths, 64 bits/path
ProtocolPelco-D
InterfacePower supply interfaceDC24V
Network interface1×10Base-T/100Base-TX, RJ45
Environment indicatorsWorking temp-25℃~+55℃(-40℃~60℃ optional)
Storage temp-40℃~+65℃
Protection gradeIP66
Physical featuresWhole machine power consumption≤100W
Weight20kg
Size508×320×308(mm)
Installation methodoutdoor pedestal mounting
