Overview

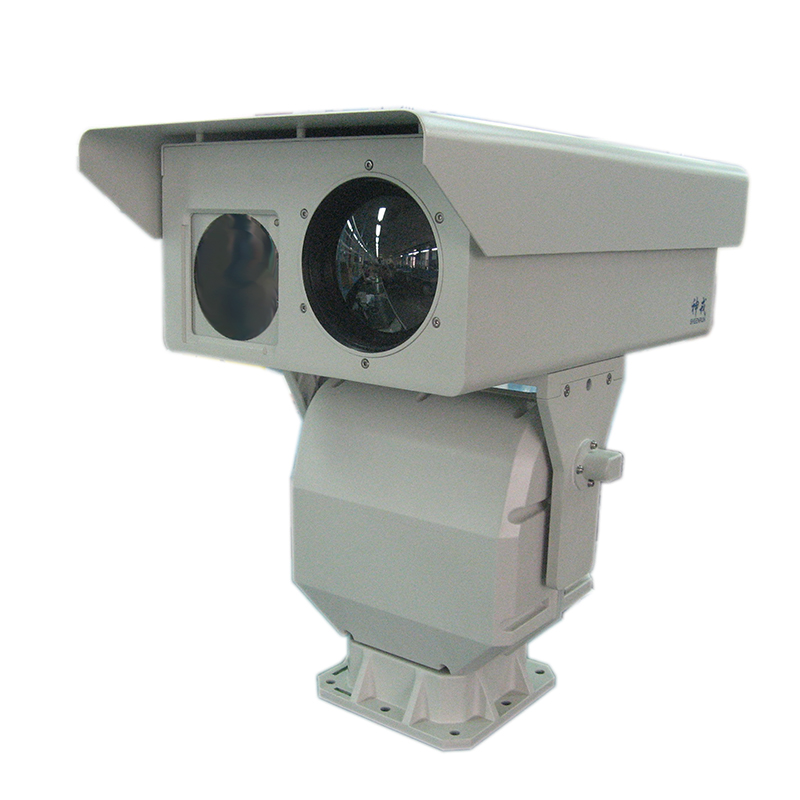

SHR-HLV4020AHNIR230 HD dual-sensor PTZ Thermal Camera integrated infrared thermal camera, HD day camera, PTZ and other parts.
The device has two operation mode: daytime mode and night time mode. In daytime mode it use CCTV lens to show image while at night time it use thermal camera to show image. When use thermal camera to show image, the effect is good with clear image.
The device adopts many key technologies on the material and process and special sealing reinforcement. The shell adopts the high intensive aluminum and stainless steel, which can be widely used in many occasions such as night, harsh environment, long distance, large scope and hidden real-time monitoring.
Features
◆ Adopt zoom thermal technology, image clear, day night mode
◆ Dual-stream function, short delay time; fully satisfy different network environment during practical applications
◆ Rich network protocol and good network adaptability, can satisfy all kinds of network environment
◆ Low power consumption, small heat, stable performance
◆ professional shell design, smart shape and low weight, can bear high temperature, anti-corrosion, water resistance and acid rain resistance
Technical Data
Operating distance | Visible light | 10km to recognize human |
Thermal camera | object | human(1.8m×0.5m) | Vehicle(2.3m×2.3m) |
Detection | 6440m | 18400m |
Recognition | 2140m | 4600m |
Identification | 1070m | 2300m |
HD lens | Lens | 16.7~1000mm |
FOV | 0.45°~25° |
Aperture Type | Auto Aperture |
Focus | Manual/Auto |
Camera and video coding | Sensor type | 1/1.8" Progressive Scan CMOS |
Total pixels | 2.1MP |
Camera control | Auto gain control, auto white balance, auto backlight compensation,
supporting manual and auto day and night mode switch |
Penetrate fog | On/Off optional |
Post-focus | Support, Remote-test |
Coding format | H.265/H.264/MJPEG |
Noise reduction | 3D Digital noise reduction |
Video resolution | 1920x1080, three stream supported |
Video frame rate | 50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720) |
Image adjustment | brightness, contrast ratio, saturation |
Infrared lens | Focal length | 20~230mm 11.5X Continuous Zoom |
FOV | 2.7°×2.0°~30.4°×23.3° |
HFOV | 0.07~0.85 mrad |
Lens control | electric zoom, electric focus, auto focus |
Detector | Detector type | Uncooled microbolometer focal plane array(VOx) |
Effective pixels | 640x512 |
Spectral range | 8~14μm |
Temp sensitivity | ≤50mK@F1.0,300K |
Frame rate | 25Hz |
Image processing | DDE, pseudo color |
Pan-tilt | Carrying capacity | 50kg (top load) |
Angle | Horizontal 360°continuous rotation, vertical -45°~+45° |
Speed | Horizontal 0.1°~20°/s, vertical 0.1°~10°/s |
Presets | 255 |
Cruise | 2 paths,64 presets each path |
Auto-scan | 1 path |
Interface | Power supply interface | DC30V |
Network interface | 1×10Base-T/100Base-TX, RJ45 |
Environment indicators | Working temp | -25℃~+55℃ |
Storage temp | -40℃~+65℃ |
Protection grade | IP66 |
Power supply | power supply | 90VAC~305VAC to DC30V water proof power supply |
power consumption | ≤140W |
Physical features | weight | ≤60kg |
Dimension | 722×429×625(L×W×H)mm |
Installation method | Outdoor pedestal mounting |
