Overview

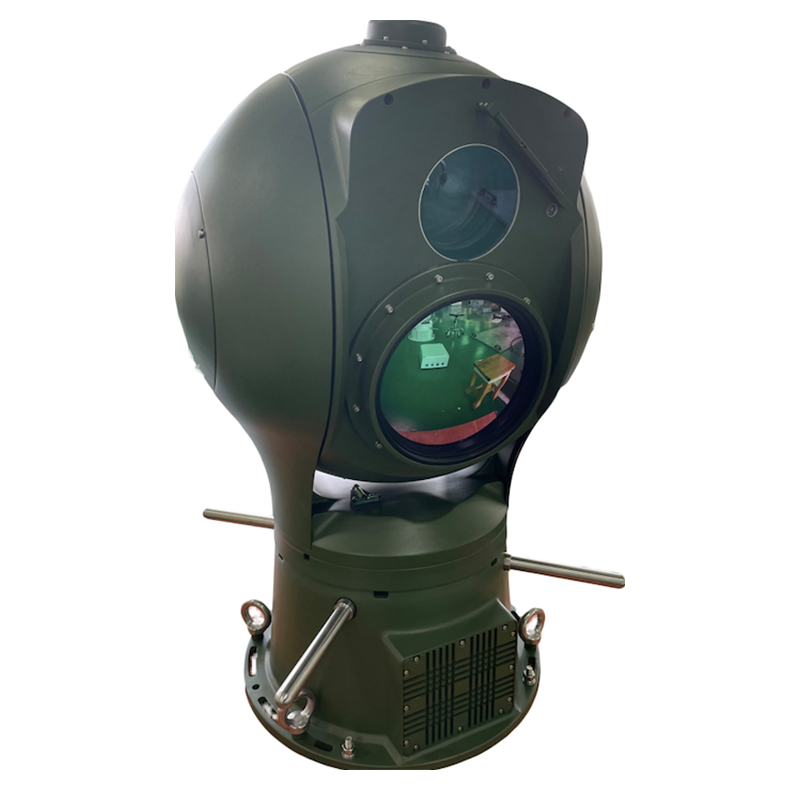

SHR-PT501HLV4040HZIR1200-AT high-definition dual-sensor ball-shaped surveillance camera is an infrared/visible light monitoring product with independent intellectual property rights. It integrates a cooled infrared thermal imager and a visible light camera. The device has two working modes: day mode and night mode. Daytime mode uses visible light lens for imaging, and night mode uses thermal imager for imaging.
Using thermal imager imaging night vision technology, it has the characteristics of clear imaging, good concealment, and not limited by light sources. The effective combination of camera and thermal imager can realize continuous monitoring day and night.
This product also adopts a number of unique key technologies in materials and processing. The shell is made of high-strength aluminum alloy and stainless steel, and it is specially reinforced and sealed. It can be widely used in night, harsh environments, long distances, and large areas.

Features

◆ Integrated design of long-distance visible light combined with thermal imaging dual-spectrum camera, day and night all-day monitoring

◆ Ultra-low illumination visible light camera, combined with thermal imaging for detailed observation, can realize continuous monitoring day and night

◆ High-definition large-magnification visible light imaging system, long observation distance

◆ Support camera back focus fine-tuning technology, can remotely debug the camera

◆ Passive thermal imaging has good concealment and is not easy to be found

◆ Using continuous zoom thermal imaging technology, the imaging is clear and the detection distance is long

◆ High-precision pantilt, high positioning accuracy, fast response, stable control, and realize all-round monitoring without blind angle

◆ Simple operation, easy to use and maintain

◆ Reinforced design of the whole machine, professionally designed shell, high temperature resistance, corrosion resistance, waterproof, acid rain proof

Main Specification
